Palet İşleme Hattı ( PIH )
Palet  İşleme Hattı
Form Makina
DETAY
Saw Motor Power: 5,5 Kw
Saw Movement: 0,37 Kw Redüktör
Stacking System: Hydraulic
Maximum Stacking : Top 40 Lists

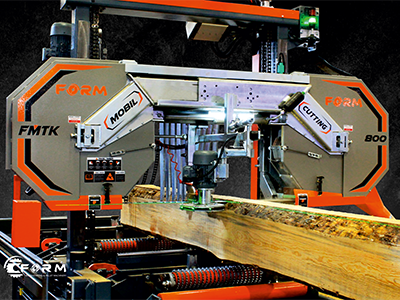

HORIZONTAL TİMBER CUTTİNG (F-MTK-800-1200) ( F-MTK-800-1200 )
HORIZONTAL TİMBER CUTTİNG (F-MTK-800-1200)
Form Makina
DETAY
Cutting Height: Max.1000mm-1200mm
Cutting Width: Max.1000mm-1200mm
Wheel diameter / Width: 600-1000 mm / 40-50 mm
Main Motor: 11-22 Kw
TWIN BAND SAWS (FBK D600) ( FBK D300 / 600 )
TWIN BAND SAWS (FBK D600)
Form Makina
DETAY
Wheel diameter: 1000mm - 1200mm
Wheel width: 40mm-80mm-100mm
Minimum cutting depth: 80mm
Maximum cutting depth: 600mm
Eco İkiz Şerit Bıçkı ( ECO FBK 250 )
Eco İkiz Şerit Bıçkı
Form Makina
DETAY
Wheel diameter: 600 mm
Wheel width: 40 mm
Cutting depth: Min: 70mm Max:250mm
Main motor: 11 kw
İkiz Daire Bıçkı (Prizma) ( FIDK 250 )
İkiz Daire Bıçkı (Prizma)
Form Makina
DETAY
Cutting Length: Min: 800 mm Max: 6000 mm
Cutting Width: Min: 70mm Max: 400 mm
Cutting Height: Min: 10mm Max: 240mm
Motor Power: 18 lkw ile 30 kw
Tekli Lata ve Kapak Kıyılama Makinası ( FILK 500 )
Tekli Lata ve Kapak Kıyılama Makinası
Form Makina
DETAY
Wheel diameter: 800mm-1000mm
Wheel width: 40mm-80mm-100mm
Maximum cutting depth: 500 mm
Feeding speed: 11 lkw ile 30kw
İKİZ LATAVE KAPAK KIYILAMA ( FILK G500 )
İKİZ LATAVE KAPAK KIYILAMA
Form Makina
DETAY
Wheel diameters: 800mm-1000mm
Wheel width: 40mm-80mm-100mm
Minimum cutting depth: 80mm
Main Motor: 11 lkw ile 37kw
İkili Kapak Yarma Makinası ( FYTK G600 )
İkili Kapak Yarma Makinası
Form Makina
DETAY
Cutting height: Min: 10 mm Max: 300 mm
Cutting Widht: Max.600 mm
Wheel diameter: 1000 - 1200 mm
Main Motor: 30 KW (2 pcs)
İkili Kapak Yarma Makinası ( İKLT G420 )
İkili Kapak Yarma Makinası
Form Makina
DETAY
Cutting Height: Min: 10 mm Max: 300 mm
Cutting Width: Max. 400 mm
Wheel Diameter: 800 mm
Main Motor: 18,5 KW (2 adet)
Boy Kesme Makinası ( FBKM )
Boy Kesme Makinası
Form Makina
DETAY
Cutting Length: Min. 40 cm - Max. 6mt.
Cutting Height: Min. 10 mm – Max. 160mm
Cutting Width: Min. 20 mm – Max. 600mm
Motor Power: 11Kw
Yatay Şerit Makinası ( YCDM G300 )
Yatay Şerit Makinası
Form Makina
DETAY
Cutting height : Min. 10 mm Max. 300 mm
Cutting width : Max. 250 mm
Band saw length : 5200 mm
Main motor : 11 Kw (2-4-6-8 pcs.)
Tekli Otomatik Boy Kesme Makinası ( FTOB B500 )
Tekli Otomatik Boy Kesme Makinası
Form Makina
DETAY
Cutting height : Min.10mm Max.200 mm
Cutting width : Max.500mm
Cutting Lenght : Min. 50mm Max.4000mm
Axe motor of circular saw : 11kw
Tahta Talaş Temizleme Makinası ( FTTM 250 )
Tahta Talaş Temizleme Makinası
Form Makina
DETAY
Min. working width : 60mm
Max. Working width: 250 mm
Working length: 600 mm - 3000 mm
Main Motor: 0,75kw(3 pcs)
Standart Yan Alma Makinası ( YAM S80 )
Standart Yan Alma Makinası
Form Makina
DETAY
Cutting height: Min: 15 mm Max: 80 mm
Axe usage area: Max. 980 mm
Axe motor of circular saw: 11 KW
Feeding: Manuel & Otomatik
Çift Kenar Alma ve Dilimleme Makinası ( ÇKADM 120 )
Çift Kenar Alma ve Dilimleme Makinası
Form Makina
DETAY
Cutting height : Min.15mm Max 160 mm
Axe usage area : Max.980mm
Number of Circular Saws: Max. 15
Feeding : Manual&Automatic
Takoz Kesme Makinası Otomatik ( OTK 3000 )
Takoz Kesme Makinası Otomatik
Form Makina
DETAY
Saw motor power: 5,5 KW
Drive motor power: 0,37 KW
Measure adjustmant: PLC (CNC Rail ve Car)
Cutting height : Max. 150cm
Sabit Zincirli Takoz Kesme Makinası ( TKM-SZM )
Sabit Zincirli Takoz Kesme Makinası
Form Makina
DETAY
Saw motor power : 5,5 kw
Drive motor power : 0,37 kw
Measure adjustmant : PLC (CNC Rail ve Car)
Cutting height : Max. 150cm
Takoz Kesme Makinası (pnömatik) ( TKM P )
Takoz Kesme Makinası (pnömatik)
Form Makina
DETAY
Motor Power : 4 kw
Movement : 8 (4 forward 4 back)
Cutting Height: Min. 6 cm Max. 15cm
Cutting Lenght : Min. 6 cm Max. 20cm
Takoz Kesme Makinası ( TKM M )
Takoz Kesme Makinası
Form Makina
DETAY
Motor Power : 4 kw
Cutting Height : Min. 6 cm Max. 12cm
Cutting Lenght: Min. 5 cm Max. 15cm
Cutting Width: Min. 6 cm Max. 15cm
Takoz Oyma Makinası ( TKOY S08 )
Takoz Oyma Makinası
Form Makina
DETAY
Carving lenght : Min. 20 cm Max. 35cm
Carving height : Max. 100mm
Carving width : Max. 70mm
Saw motor power: 11kw (2 pcs)
Tahta İstifleme Makinası ( FTIM 01-02 )
Tahta İstifleme Makinası
Form Makina
DETAY
Daily capacity : 37 m3
Working system : Electromecanic
Stacker Height: Max. 140 cm
Besleme: Automatic
Palet Bozma Makinası ( FPBM )
Palet Bozma Makinası
Form Makina
DETAY
Cutting height : Max. 170mm
Cutting width : Max. 1400mm
Motor Power: 11 Kw
Band saw lengt : 7750mm

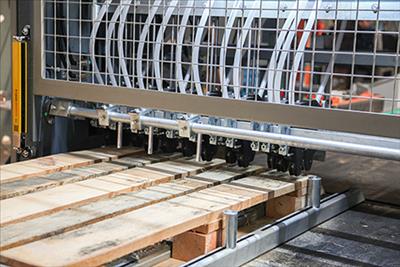

Palet Çakma Makinası ( PCM )
Palet Çakma Makinası
Form Makina
DETAY
The maximum lenght(dimension) of nailing pallet : 1200mm-1400mm
Nailing width : Max 1850 mm
The duration of minimum nailing: 1 pcs/min
Nail drive unit : Hydraulic
Palet Çift Çakım Hattı Echo ( PCM E120 CC ECHO )
Palet Çift Çakım Hattı Echo
Form Makina
DETAY
Maximum pallet : 120x140 cm
Minimum pallet : 80x100 cm
Minimum nailing duration : 3 or 5 pieces/ min.
Type of nails loose nail: Bulk Nail
Palet Çift Çakım Hattı ( PCM E140 CC )
Palet Çift Çakım Hattı
Form Makina
DETAY
Maximum dimension of pallet: of pallet : 120x140 cm
Minimum dimension of pallet: 80x100 cm
Minimum nailing period: 2 - 3 pcs./ min.
Çivi çakma ünitesi : Hidrolik
PALLET BOARD NAILING MACHINE (PAÇM 140S) ( PAÇM 140S )
PALLET BOARD NAILING MACHINE (PAÇM 140S)
Form Makina
DETAY
Nailing width:: 70 mm-150 mm
minimum nailing :: 10 pcs/min
process of nailing: Cast Nails
electricity in the machine: 21,45 Kw
Makara Çakım ve İşleme Makinası ( FMCIH CK 800 - 3200 )
Makara Çakım ve İşleme Makinası
Form Makina
DETAY
Diameter of cable drum nailing: Min: 800 mm Max: 3200 mm
Hole diameter of bobbin(drum): Min: 50 mm Max: 150 mm
Thickness of bobbin (drum)nailing: Min: 20 mm Max: 100 mm
Electric capacity: 21,45 Kw
Manuel Palet Çakım Kalıpları ( PÇT 1200 )
Manuel Palet Çakım Kalıpları
Form Makina
DETAY
Minimum pallet dimensions: 80x80cm
Maximum pallet dimensions: 110x140cm
Maximum pallet height: 200mm
Pallet mould:: Automatic (pneumatic)
Tahta Pah Alma Makinası ( FTPA - 150 )
Tahta Pah Alma Makinası
Form Makina
DETAY
Minimum Working Width : 80mm
Maximum Working Width : 150mm
Main Engin : 2,2kw(2 pcs)
Production: 12 pcs/mn
Cable Drum Nailing Processing ( FMCIH 800 - 3200 )
Cable Drum Nailing Processing
Form Makina
DETAY
Diameter of cable drum nailing : Min: 800mm Max: 3200mm
Hole diameter of bobbin(drum) : Min: 50mm Max: 150 mm
Thickness of bobbin (drum)nailing : Min: 20 mm Max: 100mm
Electric capacity : 21,45 Kw
