Product Features

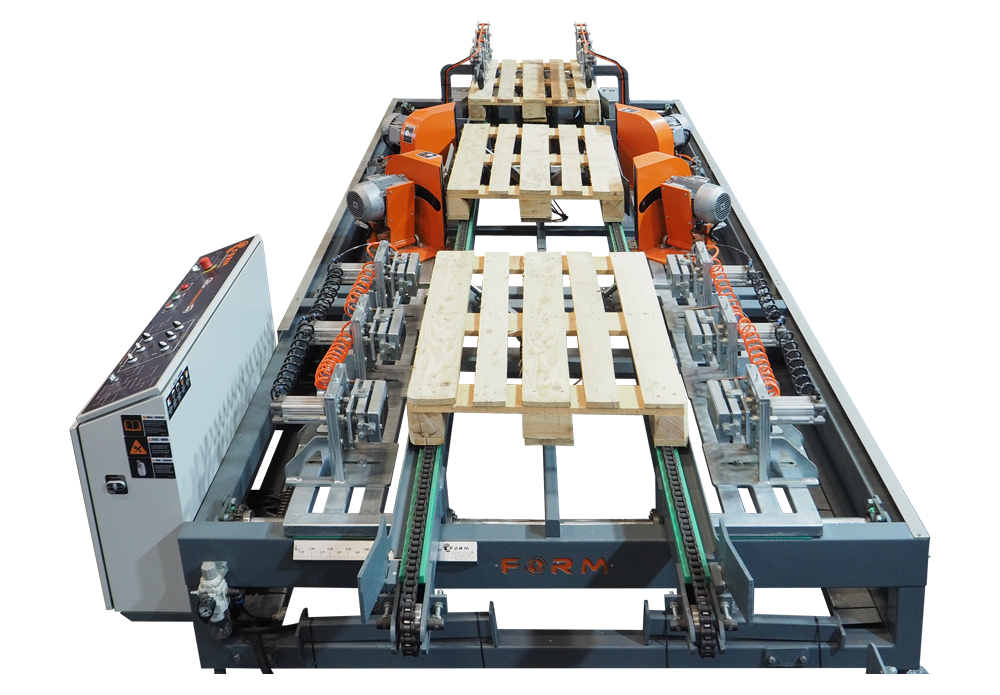

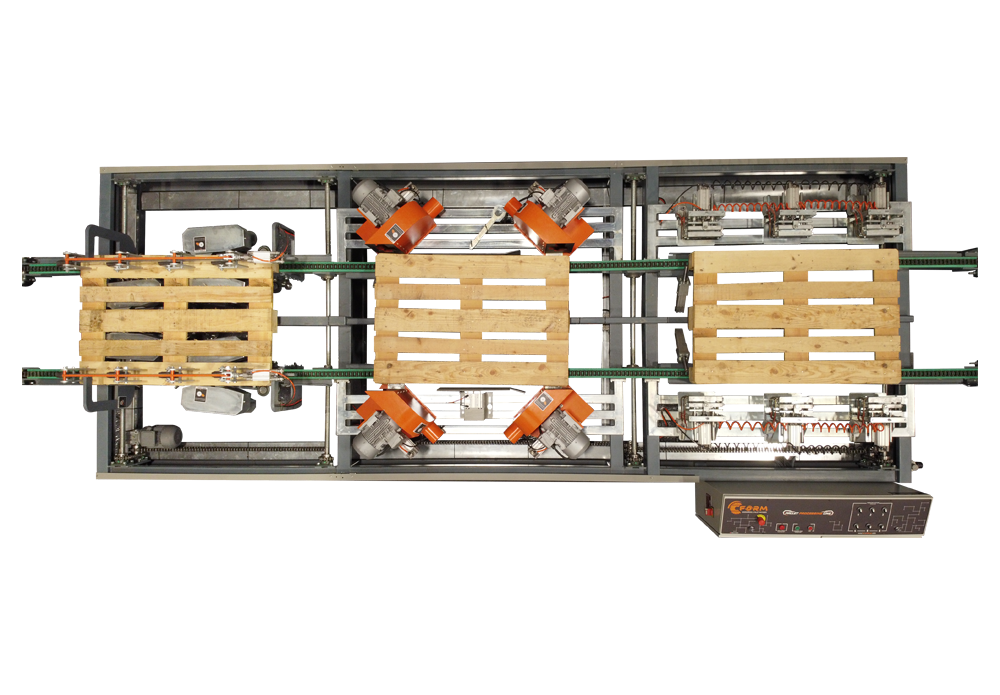

Line parts (parts of line)
1 .Pallet Fixing To Middle
2.Corner cutting machine
3.Brander Machine
4.Pallet boards chamfering machine
5.Automatic stacker for pallets

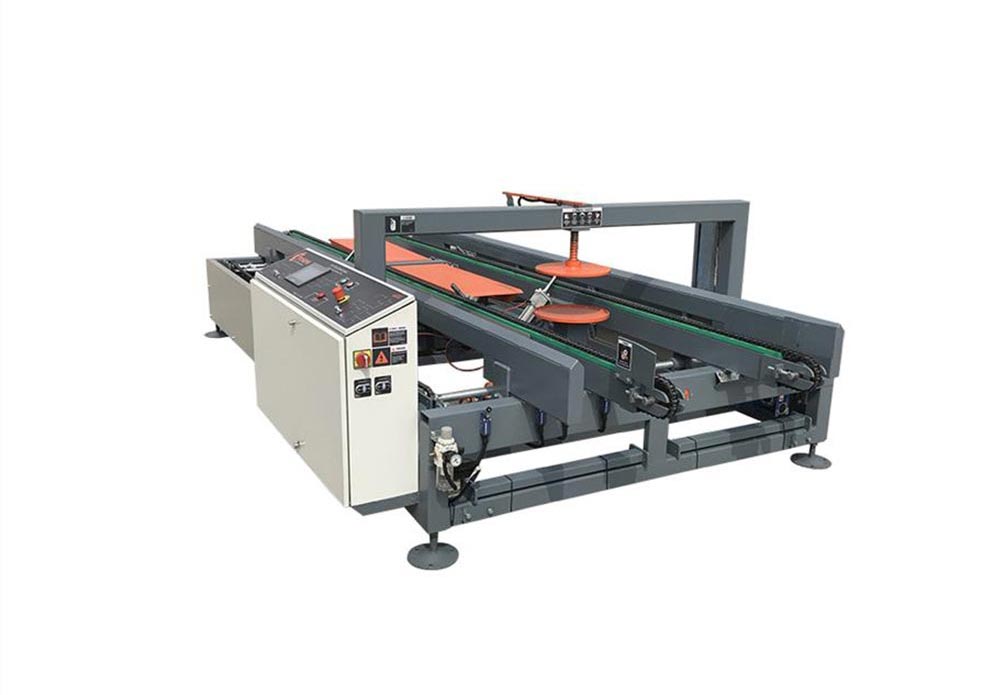

Palette fixant au milieu
It is the part which centers the pallet to the line
Conveyor system : Plastic band
Fixing to middle arm movement : Pneumatic piston
Motor power : 0,75 Kw

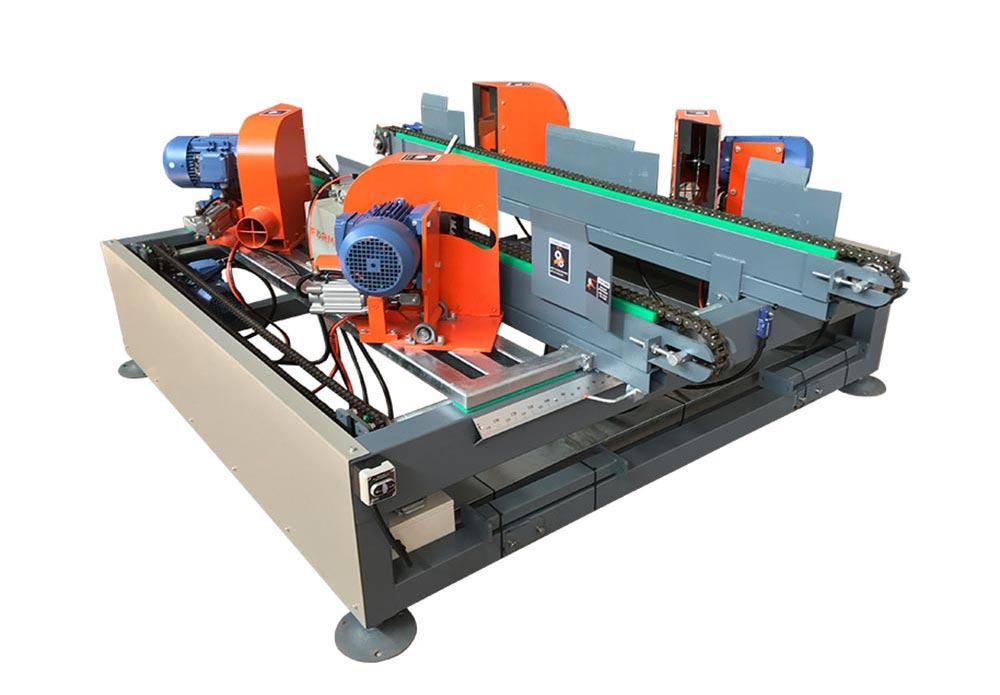

Corner cutting machine
Section to cutting the four corners of the pallet according to the required standards.
Diameter of saw : 250mm
Saw movement : Pneumatic piston
Saw motor power : 3 Kw (4 pc.)

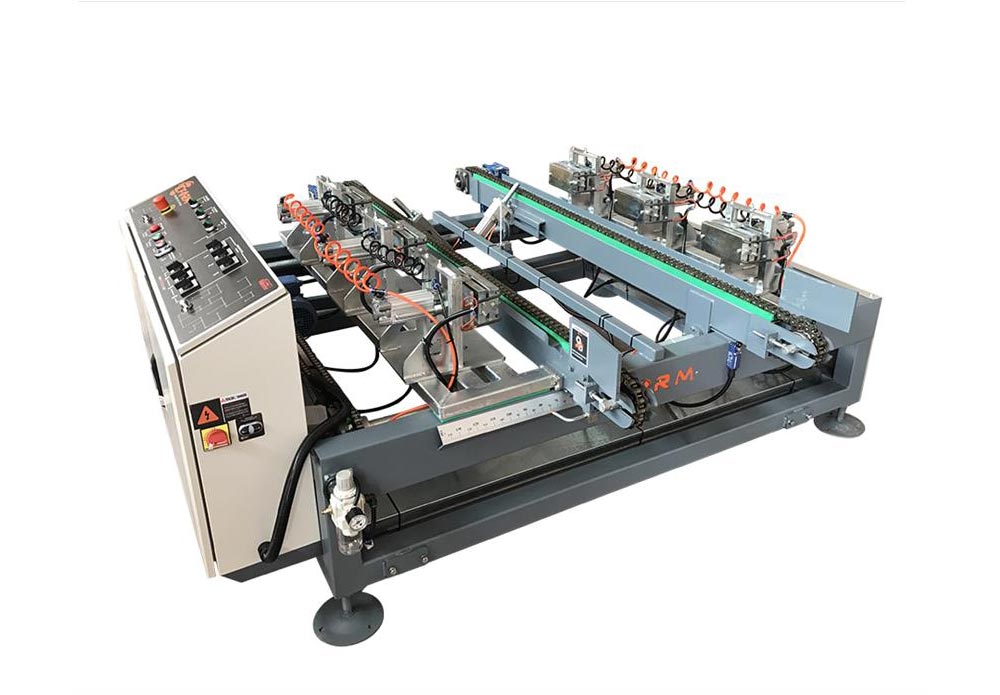

Branding Machine
Section to branding 6 blocks of the pallet et the same time.
Brand heating system : Electrical resistance
Brand press system : Pneumatic
Brand cachet : Chrome or bronze

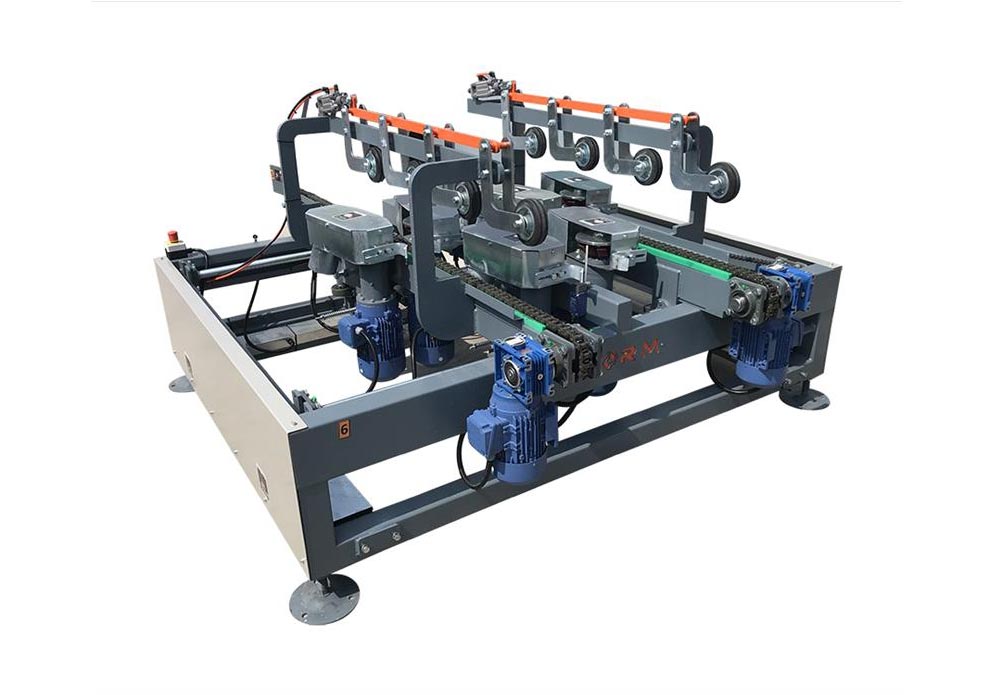

Pallets boards Chamfering machine
Section to milling inlet & outlet edges of the bottom boards as 45 c
6 special piece chamfering blade
6 pieces motor power 2,2 KW motor

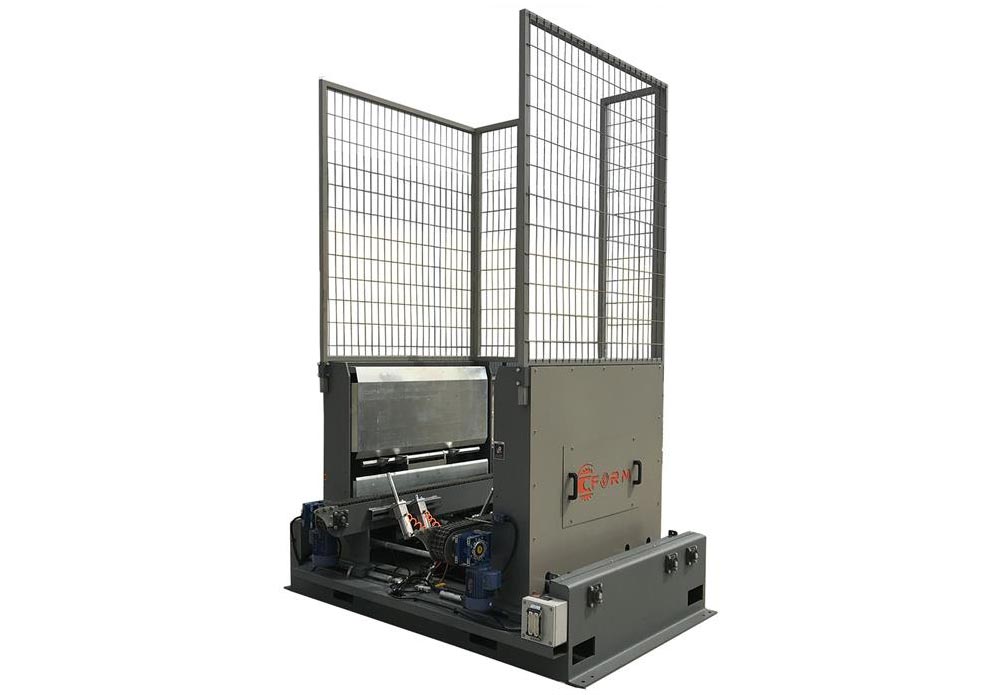

Automatic stacker for pallets
Section to stacking the pallets as successively or telescopic
Pallet turning motor : Pneumatic
Pallet loop motor : Pneumatic
Stacker system : 2,2 kw
Maximum stacker : 40 pieces
