FORM Automated Pallet Machines are engineered with innovative electrical, mechanical, hydraulic and PLC control components. Production capabilities for PCM-L upwards of 900 pallet/shift with 2 operators.

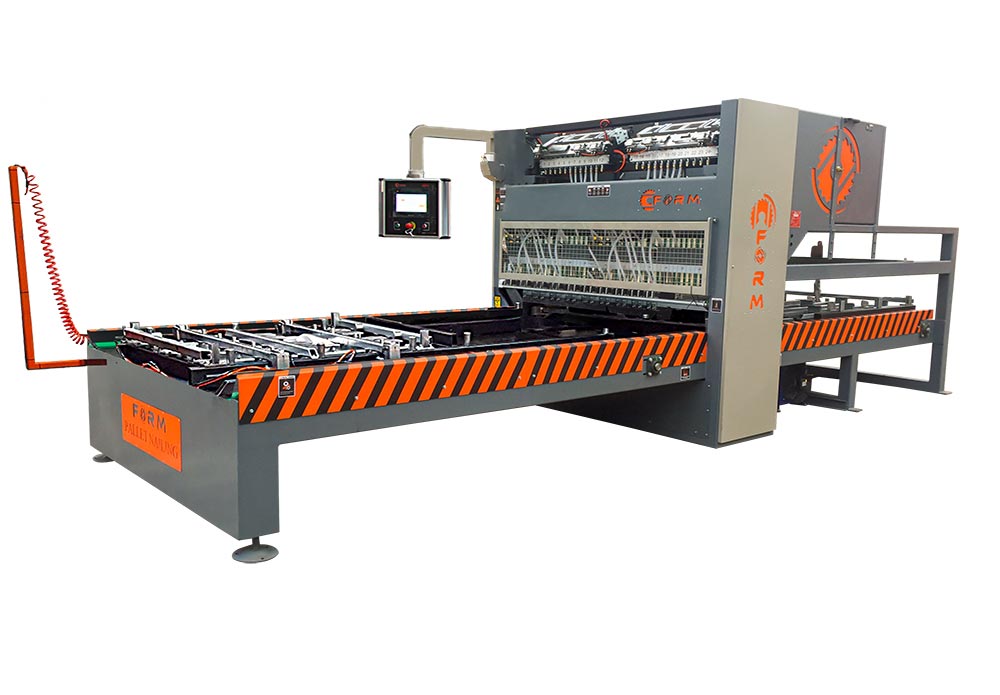

This PCM-L nailing machine is an double template moving system usable as single device or in-line full plant for various size of pallets and decks.
Features:
Upper pushing system during nailing
Back pushing device at nailing process
Palette nailing speed: 2 pcs./min.
Total power: 27,5kW
Operators: min 2 - max 3
Number of nailbox: 3 - 4 pcs.
Number of nailguns: 24 - 26 pcs.
Type of nails: 30 -100mm
Dimension of pallet: Min 800x800mm Max 1350x1450mm
Machine Dimension;
Width 2400mm
Length 6000mm
Height 3000mm
Emergency stop buttons around.
