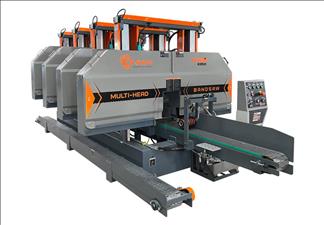

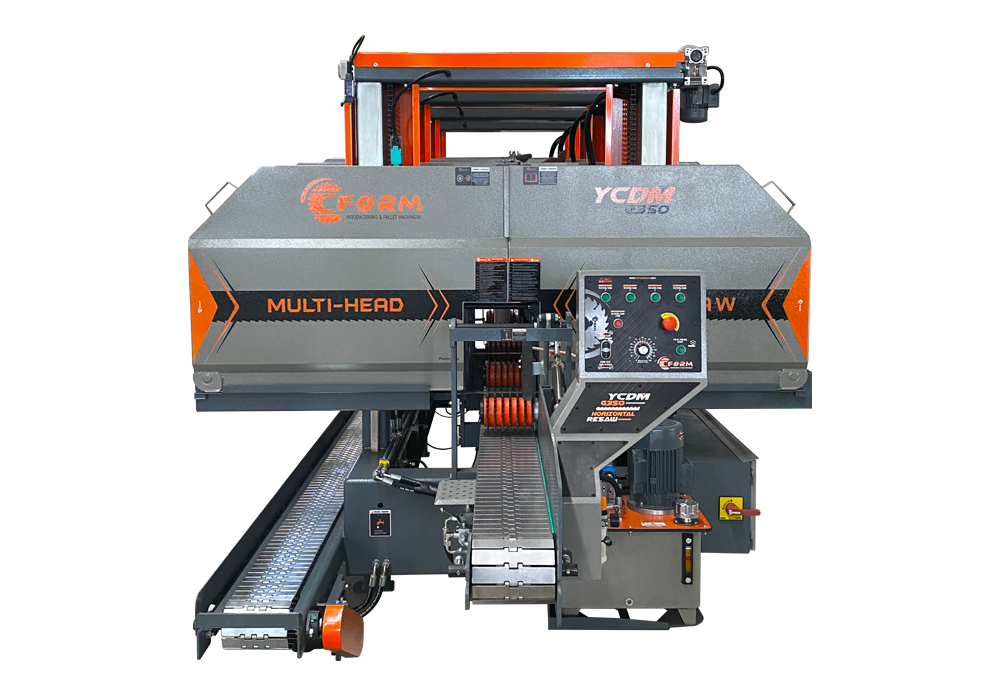

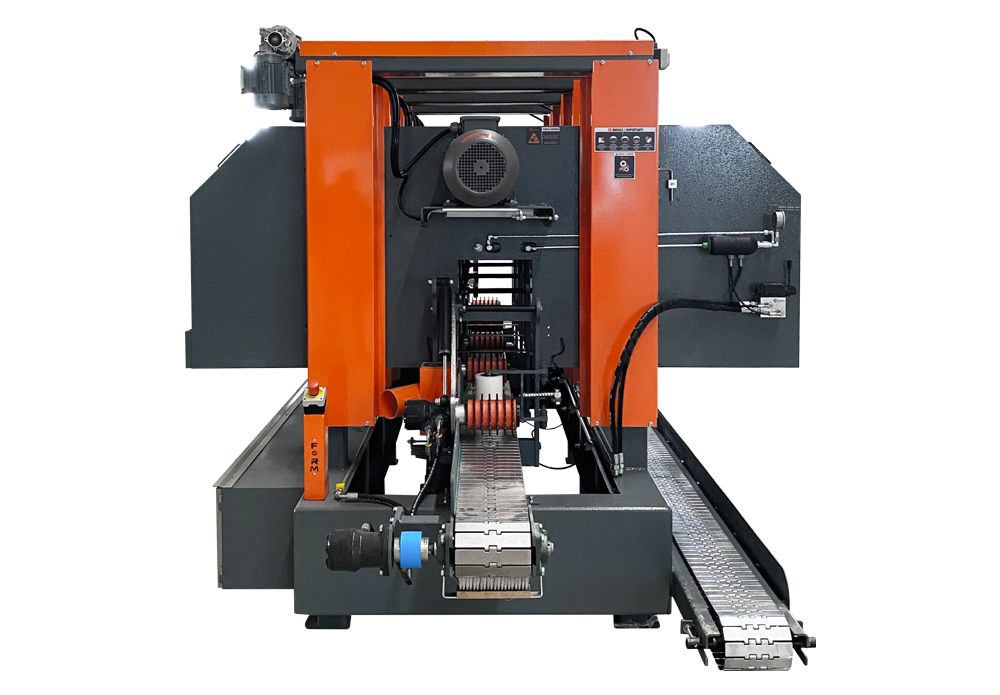

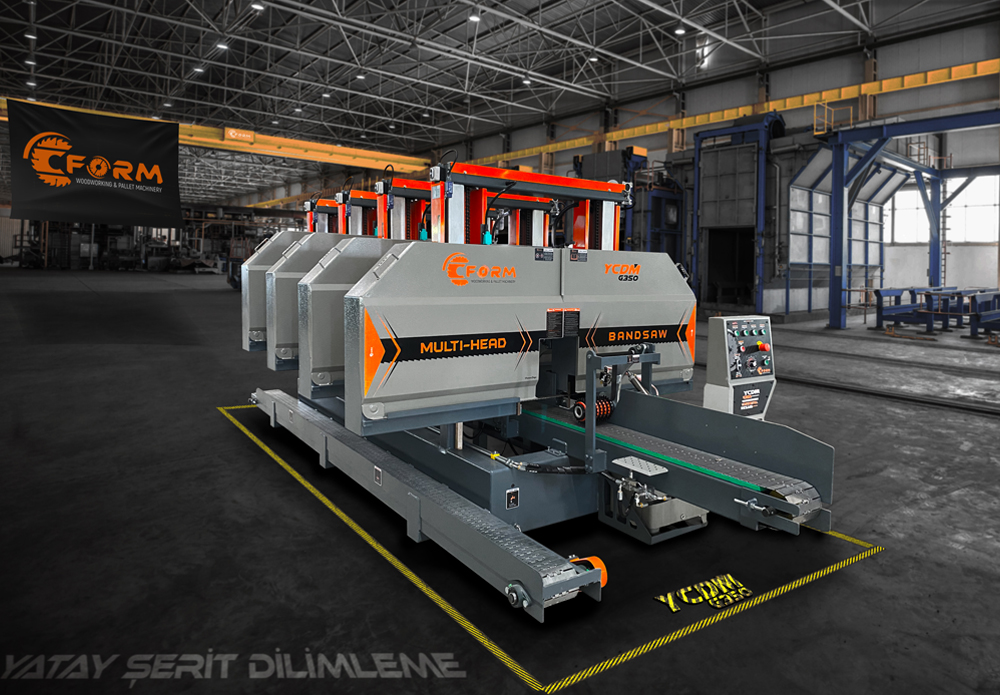

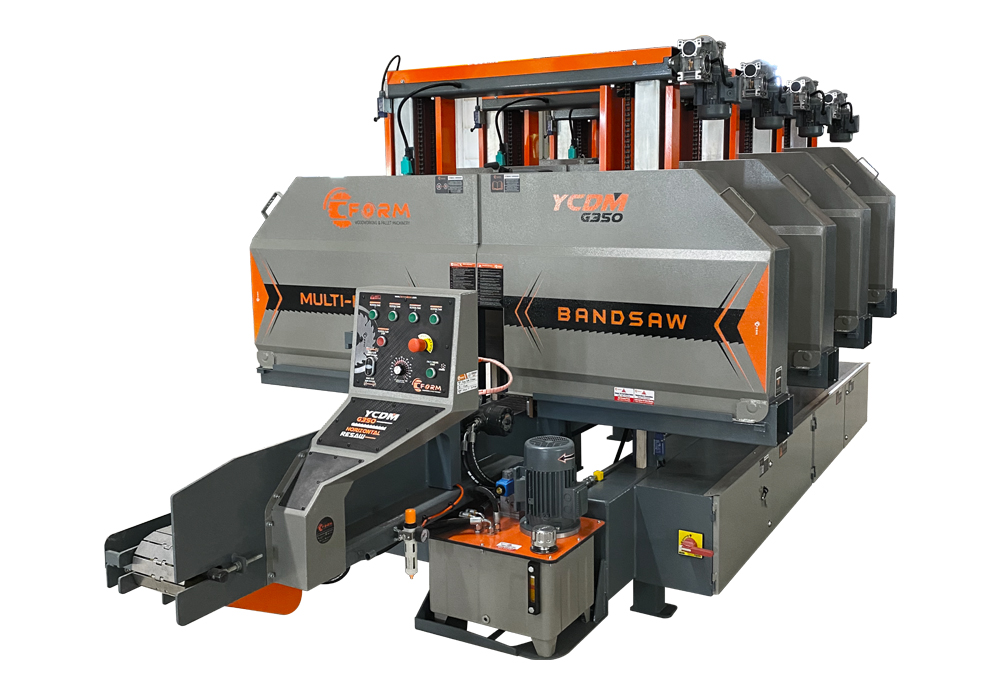

HORIZONTAL BANDSAW (YCDM G350) (2-4-6-8)

PRODUCT CODE : YCDM G350 CATEGORY : CUTTING MACHINES
HORIZONTAL BANDSAW (YCDM G350) (2-4-6-8) HORIZONTAL BANDSAW (YCDM G350) (2-4-6-8) HORIZONTAL BANDSAW (YCDM G350) (2-4-6-8) HORIZONTAL BANDSAW (YCDM G350) (2-4-6-8) HORIZONTAL BANDSAW (YCDM G350) (2-4-6-8)
  • Product Information
  • Product Videos
  • Request an Offer for the Product

- Extra thick steel frame
- Special alloy cast iron crowned fly wheels
- Sawblade tension controlled by hydraulic system
-Hydraulic system, band cutting speed adjustment

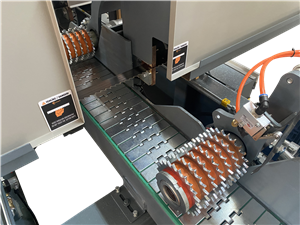

-Hydraulic system, pressing and driving rollers
-Reductor with motor, thickness adjustment by joystick
-Water coolant system
-Gaged fibre and cylinder muzzle
-Manual lubrication system

Cutting height : Min. 10 mm Max. 350 mm
Cutting width : Max. 250 mm
Wheel diameter : 800 mm
Wheel width : 40 mm
Main motor : 11 Kw (2-4-6-8 pcs.)
Band width : 200 mm (Stainless band)
Band saw length : 5200 mm
Cutting speed : Min. 5 m/mn. Max. 40 m/mn.
Hydraulic motor : 2.2 Kw
Return band motor : 1,1 Kw


  • Weight
    Weight
    3720 kg
  • Total Power
    Total Power
    50 kW
  • Bandsaw length
    Bandsaw length
    5180mm
  • Cutting Capacity
    Cutting Capacity
    Max. 350mm
  • belt no
    belt no
    22X2450 22x2950
